Professional Tensile Testing Machine 0.001 ~ 1000 Mm/Min Universal Tensile Tester

Name: Professional Tensile Testing Machine 0001 1000 MmMin Universal Tensile Tester
Brand: YUYANG
Price: 1 USD

China Professional Tensile Testing Machine 0.001 ~ 1000 Mm/Min Universal Tensile Tester factory

Brand Name : YUYANG

Model Number : YY1305

Certification : QB/T 2918-2007

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : Western Union, T/T, L/C,Paypal

Supply Ability : 3pcs /week

Packaging Details : plywood case

name : universal tensile testing machine

Motor : AC servo motor

Communication Interface : USB

Stroke Resolution : 0.00004 mm

Test Speed : 0.001~1000 mm/min selectable

Sample Rate : 200 times/sec

Contact Now

Universal Testing Test Speed 0.001~1000 mm/min Resolution Tensile Testing Machine

Description:

These series of universal testing machine are used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.),

Specification:

Model		YY1305
Capacity (optional)		100, 200, 500 N; 1,2,5 kN
Unit (Switchable)		kgf, lbf, N, kN, kPa, MPa
Load Resolution		1/200,000 (or 1/300,000 specified by user)
Load Accuracy		±0.25%
Load Range		Rangeless (full scales at the same amplification)
Stroke (exclude the grips)		1100 mm
Effective width		410 mm
Test Speed		0.001~1000 mm/min selectable
Speed Accuracy		±0.5%
Stroke Resolution		0.00004 mm
Sample Rate		200 times/sec
Communication Interface		USB
Motor		AC servo motor
Dimension (W×D×H)	Main Unit (Height exclusive of footpad)	75 × 84 × 233 cm
	Computer / Desk	109 × 65 × 116 cm
Weight (approx.)	Main Unit	216 kg
	Computer / Desk	50 kg
Power		1∮, 220V, 15A ,50Hz/60Hz or specified by user

The accessories such as the different grips, elongation measuring-devices... etc. are

equipped according to the requirements specified in the contract; our sales

representative will also give the proper suggestions to our customer beforehand.

Product Tags:

textile lab equipment

universal testing machine

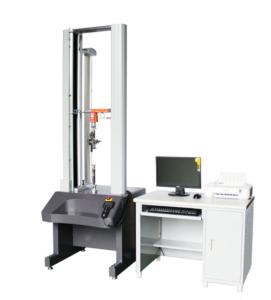

Professional Tensile Testing Machine 0.001 ~ 1000 Mm/Min Universal Tensile Tester Images
