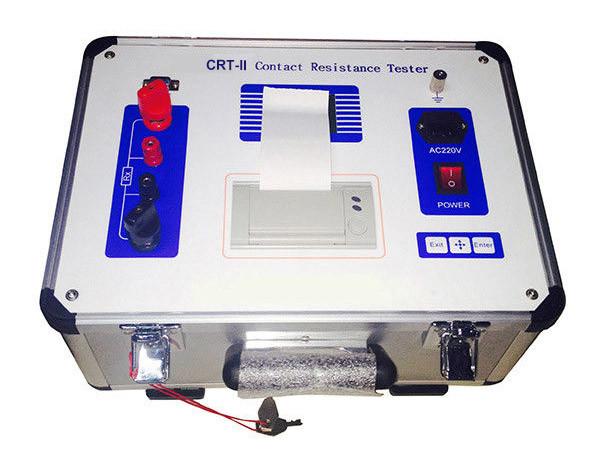

Name: Rapid Test Contact Resistance Meter Contact Resistance Test Equipment
Brand: YUYANG
Price: 2000 USD

Brand Name : YUYANG

Model Number : CRT-II

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD2000

Supply Ability : 100 sets per month

Delivery Time : 15 days

Packaging Details : Plywood case

Keyword : Contact resistance tester

Test standard : IEC62271

Power supply : AC220V±10%, 50/60Hz±10%

Display : LCD

Measuring range : 0-1999.9 μΩ

Measuring current : 100A,200A,400A,600A

Test object : circuit breaker

Warranty : 1 Year

Contact Now

100A 200A 400A 600A Low Contact Loop Resistance Tester

Introduction:

Contact resistance tester is used to test the contact resistance of circuit breaker or high current cable contacts.
It is designed according to IEC62271.
The main application of the tester is measurement of circuit breaker contact resistance.
All the test results of loop resistance tester could be print by the micro-printer which is integrated in the tester.
Also all the test results saved in the low resistance meter could be uploaded to PC computer and then convert to MS WORD document.

Features:

Specifications:

1	Measuring range	0-1999.9 μΩ Resolution:0.1 μΩ
2	Measuring current	DC 100A, 200A, 400A, 600A for choice
3	Measuring precision	0.5 %RGD+0.05%FS
4	Display mode	LCD
5	Data storage	Save no more than 100 groups of data
6	Data connection	RS232 computer interface
7	Rated power supply	AC220V
8	Size	340mm× 280mm × 210mm
9	Environment temperature	-10 ℃~+40 ℃
10	Relative humidity	<80%
